Commercial LOS

SQL

1. Calculate length of stay (LOS) from admission and discharge dates.
   • Filter to CLD hospitals, MS-DRG codes, commercial plans, inpatient claims, and patients under 65.
   • Use TQ IPPS grouper to assign MS-DRG codes (ipps_grouper_drgs)
2. Aggregate commercial LOS by provider, state, and national levels.
   • Use geometric mean (GLOS) and median LOS metrics.
   • Join with CMS ALOS and GLOS for comparison.

Query 1

CREATE TABLE tq_intermediate.cld_utils.komodo_inpatient_encounters_los AS
WITH

------------------
-- CLD INPUTS
------------------
provider_spine AS (
    SELECT
        DISTINCT
        provider_id,
        npi_value AS npi
    FROM
        tq_dev.internal_dev_csong_cld_v2_0_0.prod_rollup_provider,
        UNNEST(npi) AS t(npi_value)
    WHERE
        provider_id IS NOT NULL
        AND provider_type LIKE '%Hospital%'
),
code_spine AS (
    SELECT
        billing_code AS diagnosis_group
    FROM
        tq_dev.internal_dev_csong_cld_v2_0_0.prod_rollup_code
    WHERE
        billing_code_type = 'MS-DRG'
),

------------------
-- Komodo Data:
-- filter to CLD providers and codes
-- include only commercial plans
-- inpatient claims only
-- age < 65
------------------
komodo_headers AS (
    SELECT
        mh.encounter_key,
        mh.patient_dob,
        ps.provider_id,
        mh.admission_date,
        mh.discharge_date,
        DATE_DIFF('day', mh.admission_date, mh.discharge_date) AS los,
        COALESCE(ig.new_drg, SUBSTR(mh.diagnosis_group, 2)) as drg
    FROM tq_intermediate.external_komodo.medical_headers mh
    JOIN tq_intermediate.external_komodo.ipps_grouper_drgs ig
        ON mh.encounter_key = ig.encounter_key
    JOIN code_spine
        ON COALESCE(ig.new_drg, SUBSTR(mh.diagnosis_group, 2)) = code_spine.diagnosis_group
    JOIN provider_spine ps
        ON mh.hco_1_npi = ps.npi
    JOIN tq_intermediate.external_komodo.plans kp
        ON mh.kh_plan_id = kp.kh_plan_id
        AND kp.insurance_group = 'COMMERCIAL'
    WHERE
        claim_type_code = 'I'
        AND YEAR(patient_dob) > 1960
)
SELECT
    h.encounter_key,
    h.provider_id,
    h.drg as billing_code,
    'MS-DRG' as billing_code_type,
    admission_date,
    discharge_date,
    los,
    h.patient_dob
FROM komodo_headers h
WHERE los > 0

Query 2

CREATE TABLE tq_intermediate.cld_utils.komodo_inpatient_los AS
WITH

-- Provider-level LOS stats
df AS (
    SELECT
        los.provider_id,
        sp.provider_name,
        sp.provider_state,
        billing_code,
        count(*) AS n_encounters,
        EXP(AVG(LN(los))) AS glos,
        APPROX_PERCENTILE(los, 0.5) AS median_los,
        AVG(los) AS avg_los,
        ANY_VALUE(cms.glos) AS cms_glos,
        ANY_VALUE(cms.alos) AS cms_alos
    FROM tq_intermediate.cld_utils.komodo_inpatient_encounters_los los
    LEFT JOIN tq_production.spines.spines_provider sp
        ON los.provider_id = sp.provider_id
    LEFT JOIN tq_production.reference_legacy.ref_cms_msdrg cms
        ON billing_code = cms.msdrg
    WHERE
        los < 50
    GROUP BY 1,2,3,4
),

-- National LOS stats
commercial_median AS (
    SELECT
        billing_code,
        EXP(AVG(LN(los))) AS glos,
        APPROX_PERCENTILE(los, 0.5) AS median_los
    FROM tq_intermediate.cld_utils.komodo_inpatient_encounters_los
    GROUP BY 1
),

-- State-specific LOS stats
provider_state AS (
    SELECT
        provider_state,
        billing_code,
        EXP(AVG(LN(los)))AS glos,
        APPROX_PERCENTILE(los, 0.5) AS median_los
    FROM tq_intermediate.cld_utils.komodo_inpatient_encounters_los los
    LEFT JOIN tq_production.spines.spines_provider sp
        ON los.provider_id = sp.provider_id
    GROUP BY 1,2
)

-- Final selection
SELECT
    df.*,
    cm.glos AS commercial_national_glos,
    cm.median_los AS commercial_national_median_los,
    ps.glos AS provider_state_median_glos,
    ps.median_los AS provider_state_median_los
FROM df
LEFT JOIN commercial_median cm
    ON df.billing_code = cm.billing_code
LEFT JOIN provider_state ps
    ON df.billing_code = ps.billing_code
    AND df.provider_state = ps.provider_state

Analysis

1. Nationally, the geometric length of stay (GLOS) for commercial inpatient encounters is slightly lower than the national average. But the difference is small.

By provider type:

2. Codes where commercial GLOS and CMS GLOS are most different:

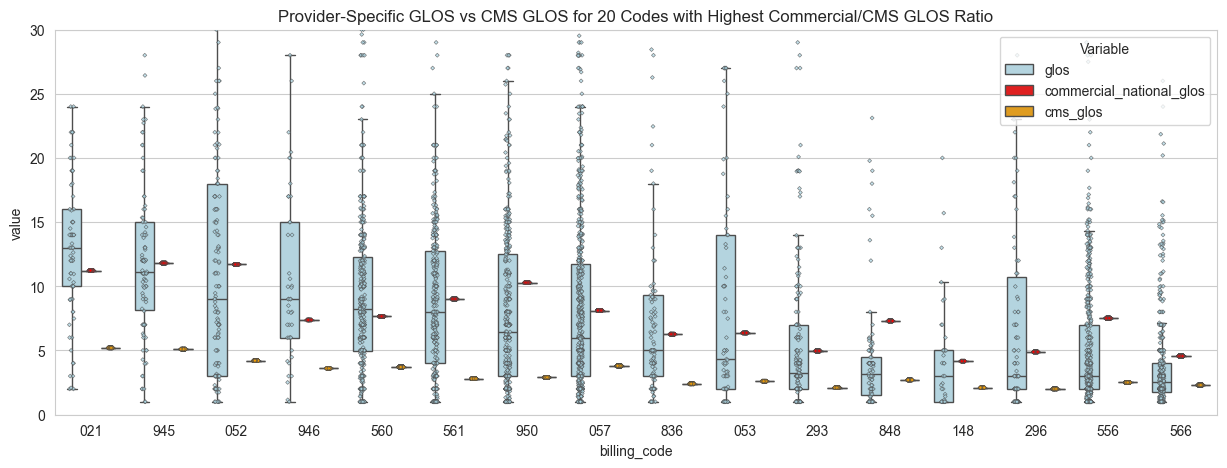

Commercial GLOS > CMS GLOS:

Commercial GLOS < CMS GLOS:

Code for Plots:


# %% [markdown]
"""
Evaluate
"""

# %%
df = pd.read_sql(f"""
SELECT *
FROM tq_intermediate.cld_utils.komodo_inpatient_los
""", con=trino_conn)

# %%
# distribution of n_encounters
ax = sns.histplot(df['n_encounters'][df['n_encounters']<110].sample(1000))
ax.set_xlim(0, 100)


# %%

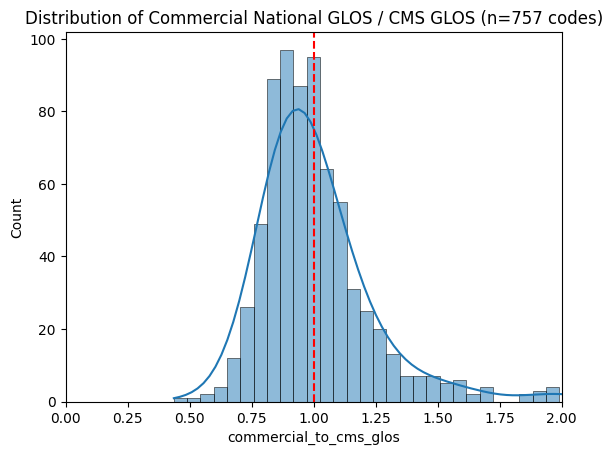

# distribution of commercial national GLOS / cms GLOS
dftmp = df.drop_duplicates(subset='billing_code')
dftmp['commercial_to_cms_glos'] = dftmp['commercial_national_glos'] / dftmp['cms_glos']
ax = sns.histplot(
    dftmp['commercial_to_cms_glos'],
    kde=True,
    label='commercial/cms GLOS ratio'
)
ax.set_xlim(0, 2)
plt.title('Distribution of Commercial National GLOS / CMS GLOS (n=757 codes)')
plt.axvline(1, color='red', linestyle='--')

# %%

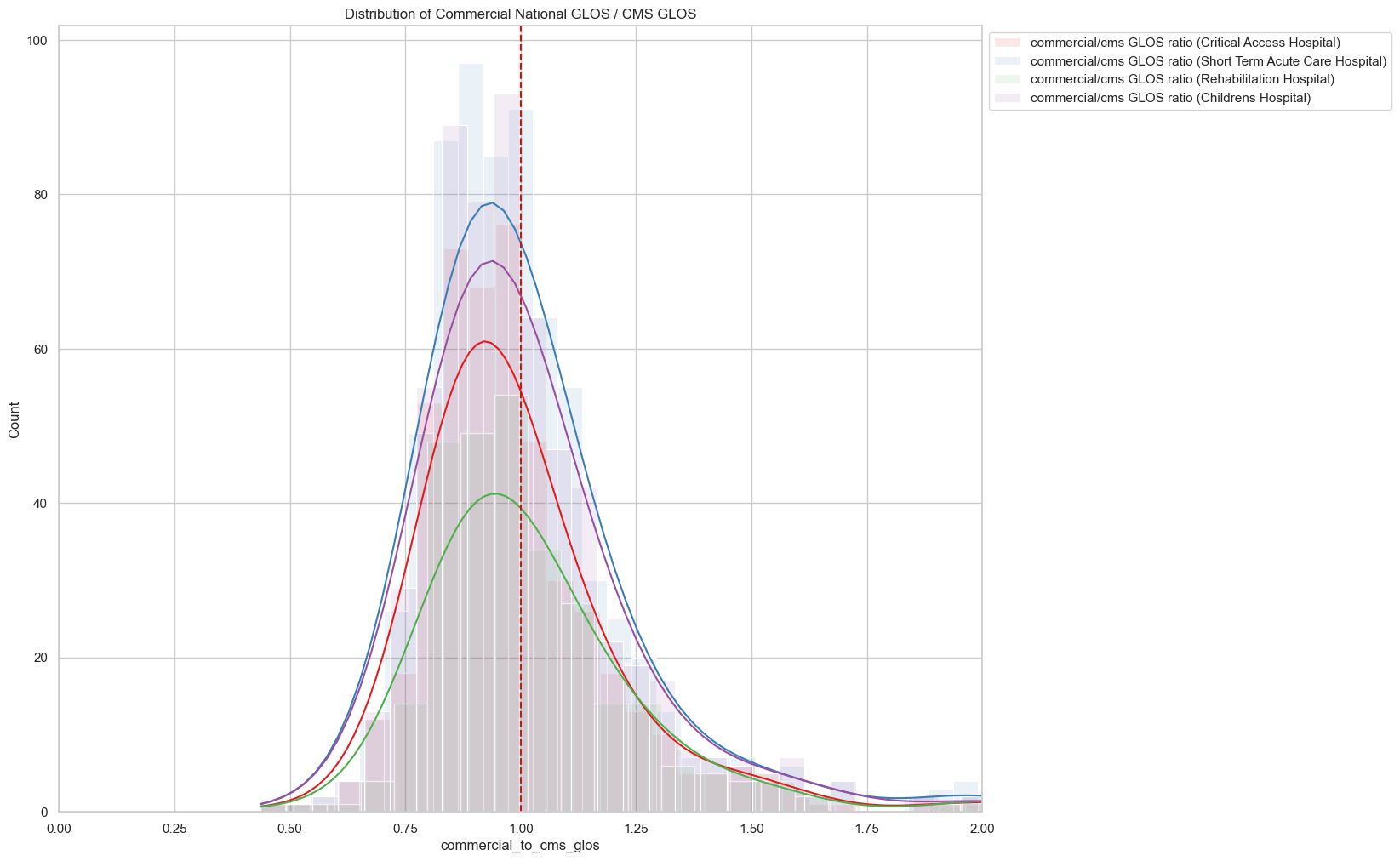

# distribution by provider type
sns.set_theme(style='whitegrid', rc={'figure.figsize': (14, 12)})
colormap = sns.color_palette("Set1", n_colors=len(df['provider_type'].unique()))
for provider_type in df['provider_type'].unique():
    dftmp = df[df['provider_type'] == provider_type].drop_duplicates(subset='billing_code')
    dftmp['commercial_to_cms_glos'] = dftmp['commercial_national_glos'] / dftmp['cms_glos']
    ax = sns.histplot(
        dftmp['commercial_to_cms_glos'],
        kde=True,
        label=f'commercial/cms GLOS ratio ({provider_type})',
        color=colormap[df['provider_type'].unique().tolist().index(provider_type)],
        # don't fill bars
        fill=0.1,
        alpha=0.1,
    )
ax.set_xlim(0, 2)
plt.title('Distribution of Commercial National GLOS / CMS GLOS')
plt.axvline(1, color='red', linestyle='--')
plt.legend(loc='upper left', bbox_to_anchor=(1, 1))

# %%

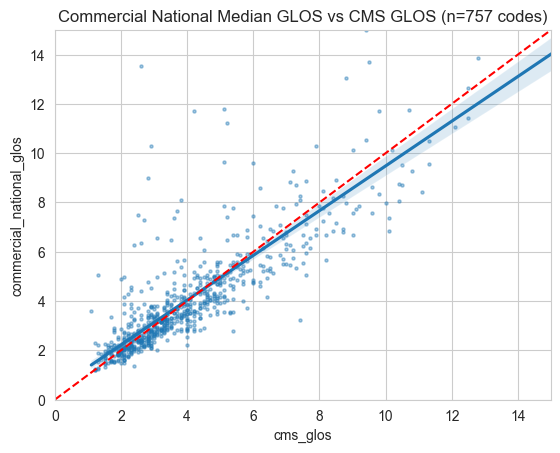

# commercial national glos vs cms glos
ax = sns.regplot(
    data=df.drop_duplicates(subset='billing_code'),
    x='cms_glos',
    y='commercial_national_glos',
    scatter_kws={'alpha': 0.4, 's': 5},
)
plt.plot([0, 15], [0, 15], color='red', linestyle='--', label='y=x')
plt.title('Commercial National Median GLOS vs CMS GLOS (n=757 codes)')
ax.set_ylim(0,15)
ax.set_xlim(0,15)


# %%
# individual providers
ax = sns.regplot(
    data=df.loc[df['n_encounters']>100],
    x='cms_glos',
    y='glos',
    scatter_kws={'alpha': 0.1, 's': 5},
)
ax.set_ylim(0,15)
ax.set_xlim(0,15)
plt.title('Provider-Specific GLOS vs CMS GLOS for Codes with >100 Encounters')
plt.plot([0, 15], [0, 15], color='red', linestyle='--', label='y=x')
plt.legend()



# %%
# compare codes with high commercial national GLOS / CMS GLOS ratio
code_sums = df.groupby('billing_code').agg({'n_encounters': 'sum'})
dfboxplot = (
    df
    .loc[df['billing_code'].isin((code_sums.loc[code_sums['n_encounters']>100].index))]
    .loc[
        df['billing_code'].isin(dftmp.sort_values('commercial_to_cms_glos', ascending=True).head(20)['billing_code'])
    ]
)
dfboxplot = (
    dfboxplot
    .melt(id_vars=['provider_id', 'billing_code'], value_vars=['glos', 'commercial_national_glos', 'cms_glos'])
)
order = (
    dfboxplot
    .loc[dfboxplot['variable'] == 'glos']
    .groupby(['billing_code', 'variable'])
    .value.median()
    .reset_index()
    .sort_values(['variable', 'value'], ascending=[True, False])
    ['billing_code']
)

sns.set_style('whitegrid')
plt.figure(figsize=(15, 5))
ax = sns.boxplot(
    data=dfboxplot,
    order=order.unique(),
    x='billing_code',
    y='value',
    hue='variable',
    showfliers=False,
    palette=['lightblue', 'red', 'orange'],
)

sns.stripplot(
    data=dfboxplot,
    order=order.unique(),
    x='billing_code',
    y='value',
    hue='variable',
    dodge=True,
    alpha=0.7,
    palette=['lightblue', 'red', 'orange'],
    marker='D',
    edgecolor='gray',
    linewidth=0.5,
    size=2
)
ax.set_ylim(0, 30)

# Remove duplicate legend
handles, labels = plt.gca().get_legend_handles_labels()
plt.legend(handles[:3], labels[:3], title="Variable", loc='upper right')
plt.title('Provider-Specific GLOS vs CMS GLOS for 20 Codes with Lowest Commercial/CMS GLOS Ratio')

Takeaways

1. On average, commercial GLOS and CMS glos are similar. The differences in GLOS and CMS GLOS would not meaningfully impact aggregate provider comparisons.
2. Commercial GLOS can be 50% to 150% of CMS GLOS. Most codes are within 20% of CMS GLOS.
3. Variability at the provider-level is higher. But there are lower sample sizes for many providers. It's unclear if the variability is due to noise or true differences in care patterns.
